The process of moulding which is generally used to convert plastic based raw materials into usable plastic items is called injection moulding. The process is used to manufacture parts or products from using both thermosetting and thermoplastic poly materials. The materials here, are first melted, designed, and cooled so that to be supplied for use.
Injection moulding is one of the most used manufacturing techniques to make a variety of parts especially those that are used in the automobile industry.

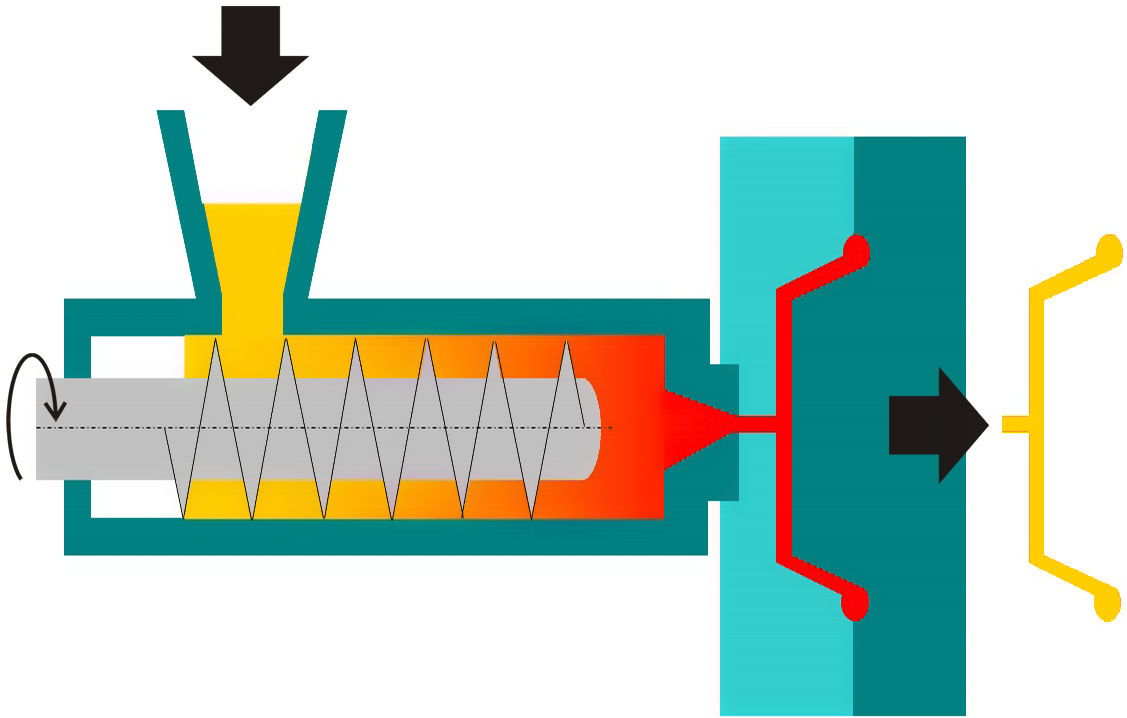

The injection moulding process includes four major steps
Clamping
Clamping is the initial stage where the mould is securely held by a hydraulically powered clamping unit. Here in return, the clamping unit pushed the mould and exerts the force to keep it tightly enclosed while being injected.
Injection
The polymeric material which is brought in the manufacturing plant in the form of powder is transferred into the moulding machine by the injection unit for the purpose of melting. Once the material is molten, it is further injected into pressure packs quickly while keeping under a maintained temperature.
Cooling
The molten material doesn’t take much time to solidify completely, for quicker results; it is kept in a pre-determined cool temperature for some time. As the plastic cools down, it adopts the desired shape of the part. At times, the cooling process gets affected by shrinkage which can be corrected at the injection stage when the additional quantity of material can be flowed into the mould.
Ejection
The process incorporates ejection as the most crucial stage. This stage typically uses a mechanism to push the part out of the mould. As the prepared part adheres to the mould it requires some force to exert it out. Sometimes, a release agent may also be used and sprayed on the mould’s surface to make the ejection process conveniently easier.
The designing and tooling process in injection moulding process incorporates the draft, radii, ribs, corners, wall thickness, bosses, and the weld part lines. The draft used here actually describes the taper degree required to eject the moulded plastic carefully. The ribs are one of the most important components to add structural strength to the part. The bosses locate, mount, and assemble the parts that are moulded successfully. The radii help to prevent sharp corners and additionally help to put strength in the part.
There are numerous manufacturers that prepare moulding parts and some of them can provide you with parts at reasonable costs. The only thing you should consider is to choose the manufacturer wisely to prevent loss and disappointment.
